Fuel Parts
Soon to be released
C7 Covette
This is a brand new fuel block designed specifically for the C7.It is similar in its installation to the C6 fuel block but its oval shape fit the C7 tank better. It is available with a -10 feed and -8 return only at this time. Install does not require the removal of the fuel tank.

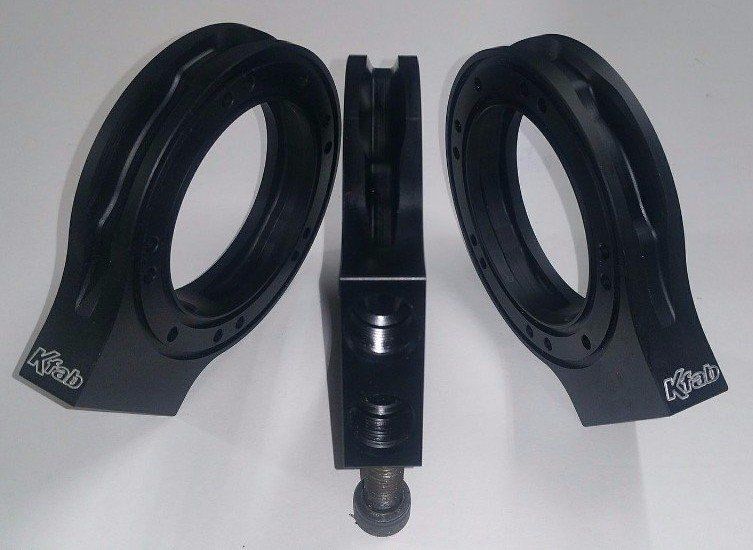

C6 Corvette and universal use
This Fuel block is available in 2 different versions.-8 inlet/-6 return and also -10 inlet/-8 return
Hard coat anodized for use with E85. Easy installation without removing tank. Both are fitted with a fuel sock. Feed tube is large enough to provide flow for -10 line. Complete with bolts orings and install hook tool. Available at ECS Check industry links for contact info.
C5 Corvette Large Diameter Fuel Ring
This is a brand new version offering a Hardcoat Anodized coating for better protection against E85 fuel. It also features 2 -8 AN oring boss bores. These allow full flow of a -10 line through both ports. Fittings supplied as requested.
Supplied with 4 orings (2 each side) and bolts. Available at ECS Check industry links for contact info.
Fittings available
-8 plug for non return system
-6
-8
-10

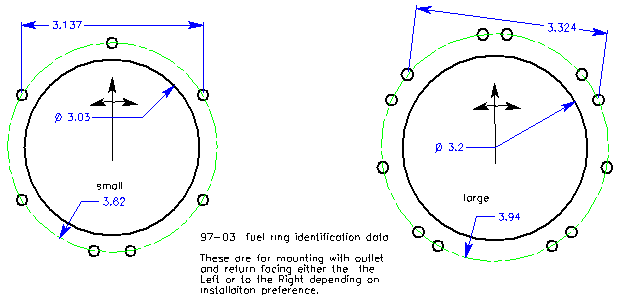

Look below to check for proper fit.
C5 Corvette Small Diameter Fuel Ring
This is Fuel block is supplied with -6 oring boss for fuel return and -8 oring boss for fuel feed.Fittings supplied as requested.
Supplied with 4 orings (2 each side) and bolts.
Fittings available
-6 plug for non return system
-6
-8
-10
Look below to check for proper fit.
