Tubular Parts


A =  The angle the tube is bent at in total degree's
CR = Radius at the center of the bend
B & C =  The length of a "tangent" or the length from the end of the bend radius to the end of the leg
T = Thickness of wall
M =  Material
P= polished    NP=  no polish
.875 OD  SPACER TUBING
We had  the extrusion tooling made for this material.  We use this for  spacers for the supercharger kits. Have also used it for radius rods for various applications and threaded bungs.
The OD is .875 and the ID is .378-.380. Perfect slip fit for 3/8 bolts  and very easy to drill for anything larger like 10mm common in new cars. NO drilling solid bar stock. Just cut and face in lathe or use a parting tool and do the cutting and facing in one operation. Some 12' long pieces are available but most is stocked in 6' long lengths for bar feeding purposes. Material is 6061-T6 extruded. Mill finish but polishes easily prepping with 400 grit and then buffing.   Box of misc drops are sometimes available. Usually 1-4" long pcs.

3" OD Bends

A 90   B 6.0   C 6.0    T .065   CR 3.0   M  Aluminum     NP
A 90   B 6.0   C 8.0    T .065   CR 3.0   M  Aluminum     NP
A 120  B 6.0   C 6.0    T .065   CR 4.5   M  Aluminum     NP
A 45    B 6.0   C 6.0    T .065   CR 4.5   M  Aluminum     NP
A 45    B 6.0   C 8.0    T .065   CR 4.5   M  Aluminum     NP
A 70    B 6.0   C 6.0    T .065   CR 4.5   M  Aluminum     NP

Some straight lengths are also available     NP

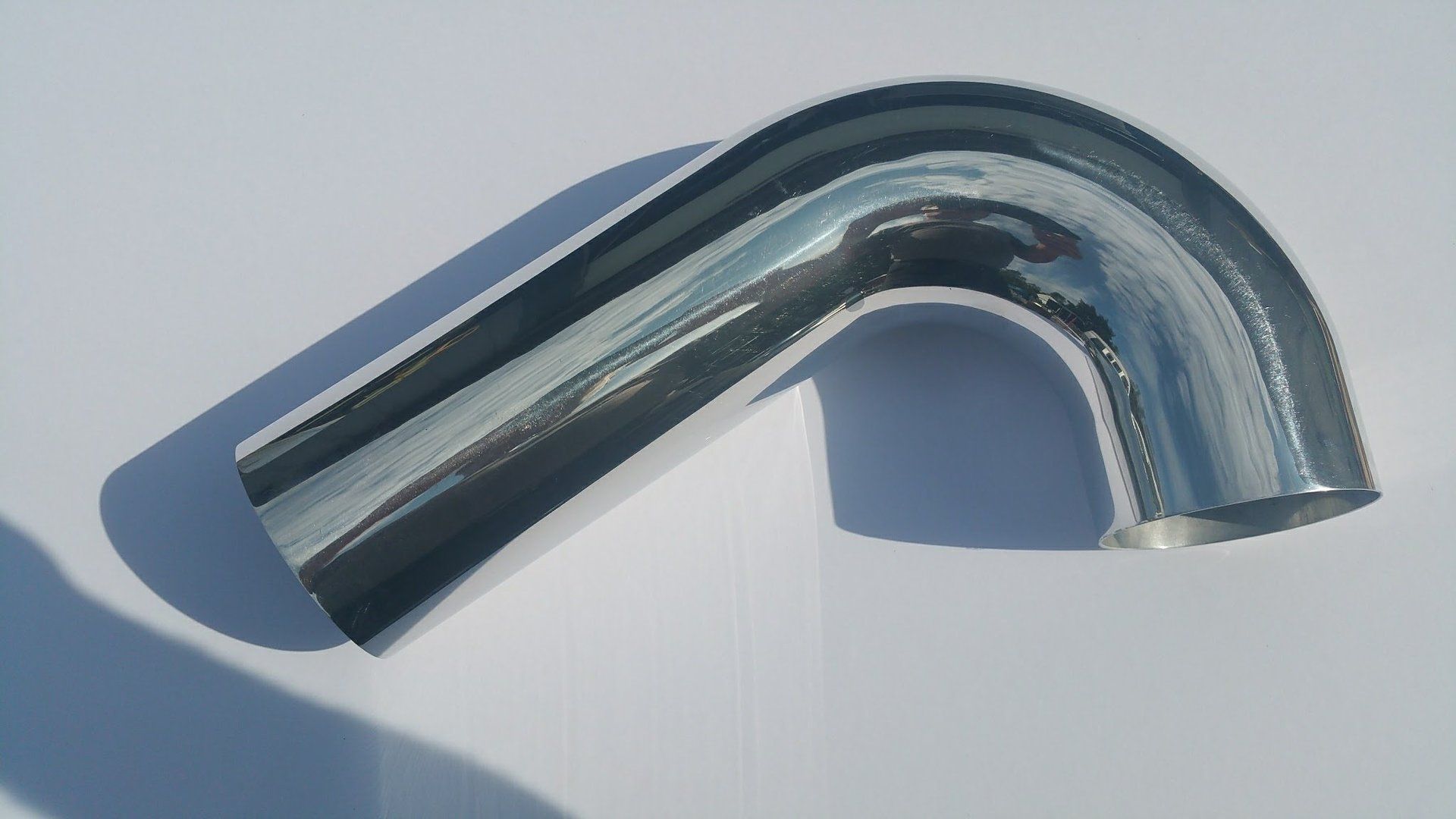

3.5" OD Bends

A 110   B 6.0 C 18.0 T .065 CR 3.5   M Aluminum NP & P
A 110   B 6.0 C 18.0 T .065 CR 3.5 M Aluminum NP & P
A 110   B 6.0 C 18.0 T .065 CR 3.5 M Aluminum NP & P
A 60    B 6.0 C 18.0 T .065 CR 3.5 M Aluminum NP & P
A 65    B 6.0 C 18.0 T .065 CR 3.5 M Aluminum NP & P

Some straight lengths are also available     NP

4"  OD Bends

A 60   B 6.0   C 18.0   T .065   CR 4.0   M Aluminum     NP & P
A 65   B 6.0   C 18.0   T .065   CR 4.0   M Aluminum     NP & P
A 60   B 6.0   C 18.0   T .065   CR 4.0   M Aluminum     NP & P
A 60   B 6.0   C 18.0   T .065   CR 4.0   M Aluminum     NP & P
A 60   B 6.0   C 18.0   T .065   CR 4.0   M Aluminum     NP & P
Some straight lengths are also available     NP
